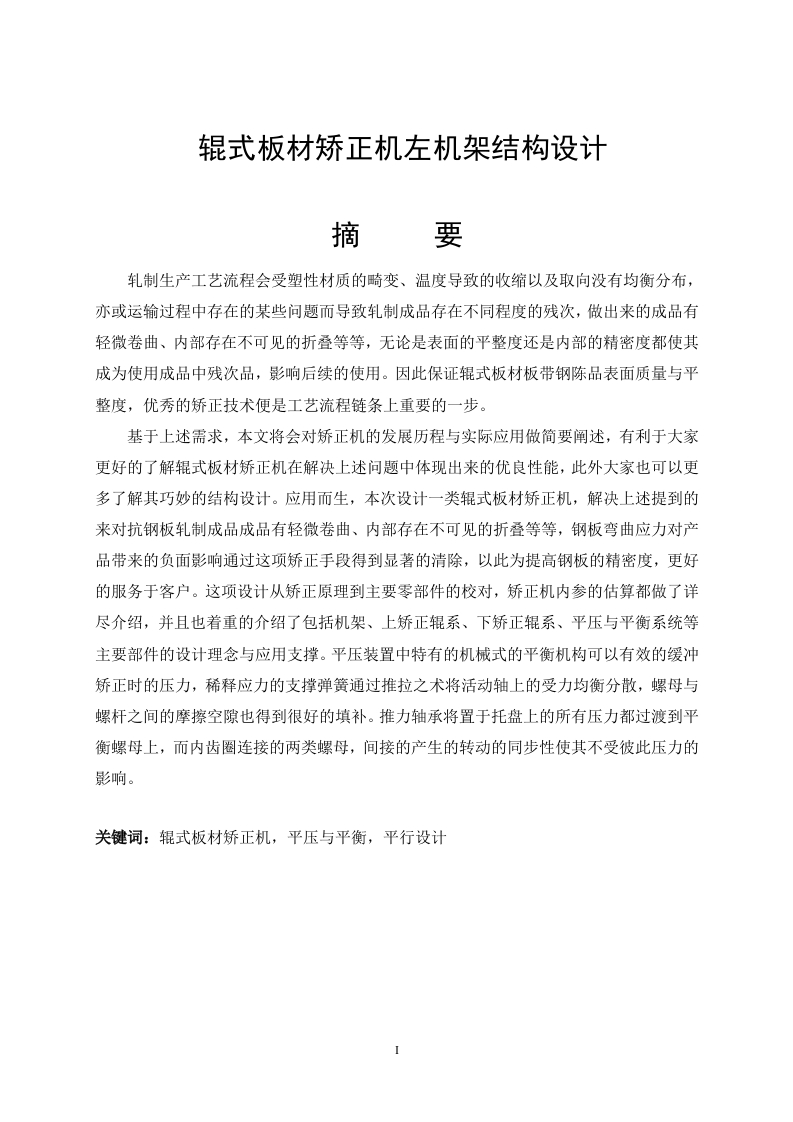

辊式板材矫正机左机架结构设计摘要轧制生产工艺流程会受塑性材质的畸变、温度导致的收缩以及取向没有均衡分布，亦或运输过程中存在的某些问题而导致轧制成品存在不同程度的残次，做出来的成品有轻微卷曲、内部存在不可见的折叠等等，无论是表面的平整度还是内部的精密度都使其成为使用成品中残次品，影响后续的使用。因此保证辊式板材板带钢陈品表面质量与平整度，优秀的矫正技术便是工艺流程链条上重要的一步。基于上述需求，本文将会对矫正机的发展历程与实际应用做简要阐述，有利于大家更好的了解辊式板材矫正机在解决上述问题中体现出来的优良性能，此外大家也可以更多了解其巧妙的结构设计。应用而生，本次设计一类辊式板材矫正机，解决上述提到的来对抗钢板轧制成品成品有轻微卷曲、内部存在不可见的折叠等等，钢板弯曲应力对产品带来的负面影响通过这项矫正手段得到显著的清除，以此为提高钢板的精密度，更好的服务于客户。这项设计从矫正原理到主要零部件的校对，矫正机内参的估算都做了详尽介绍，并且也着重的介绍了包括机架、上矫正辊系、下矫正辊系、平压与平衡系统等主要部件的设计理念与应用支撑。平压装置中特有的机械式的平衡机构可以有效的缓冲矫正时的压力，稀释应力的支撑弹簧通过推拉之术将活动轴上的受力均衡分散，螺母与螺杆之间的摩擦空隙也得到很好的填补。推力轴承将置于托盘上的所有压力都过渡到平衡螺母上，而内齿圈连接的两类螺母，间接的产生的转动的同步性使其不受彼此压力的影响。关键词：辊式板材矫正机，平压与平衡，平行设计Structural design of left frame of roller platestraightening machineAbstractThe rolling production process will be affected by the distortion of the plastic material,the shrinkage caused by temperature,and the uneven distribution of the orientation,or someproblems in the transportation process,resulting in different degrees of inferiority of therolled product,and the finished product is slightly Curls,invisible folds inside,etc.,whether itis the flatness of the surface or the precision of the inside,make it a defective product in thefinished product,which affects the subsequent use.Therefore,to ensure the surface qualityand flatness of the rolled plate and strip steel products,excellent correction technology is animportant step in the process chain.Based on the above requirements,this article will briefly explain the developmentprocess and practical application of the straightening machine,which will help you betterunderstand the excellent performance of the roll plate straightening machine in solving theabove problems.In addition,you can also learn more Its clever structural design.Born fromapplication,this time designed a type of roll plate straightening machine to solve the abovementioned to counteract the slight curl of the finished steel plate finished product,invisiblefolds inside,etc.,the negative impact of steel plate bending stress on the product Obviouslyremoved through this correction method,in order to improve the precision of the steel plateand better serve customers.This design has introduced in detail from the correction principleto the proofreading of the main parts,the estimation of the internal parameters of thecorrection machine,and also focused on the introduction of the frame,the upper correctionroller system,the lower correction roller system,the flattening and balancing system,etc.Thedesign concept and application support of the main components.The unique mechanicalbalancing mechanism in the flat pressing device can effectively buffer the pressure duringcorrection.The support spring of diluting stress balances the force on the movable shaftthrough the push-pull technique,and the friction gap between the nut and the screw is alsovery good.Well filled.The thrust bearing transfers all the pressure placed on the pallet to thebalance nut,and the two types of nuts connected by the internal ring gear,the indirectsynchronization of the rotation,makes it independent of the pressure of each other.Key words:Roll plate straightening machine,flat pressure and balance,parallel design
